SentryGlas® delivers clarity, strength and safety at Shum Yip Upperhills

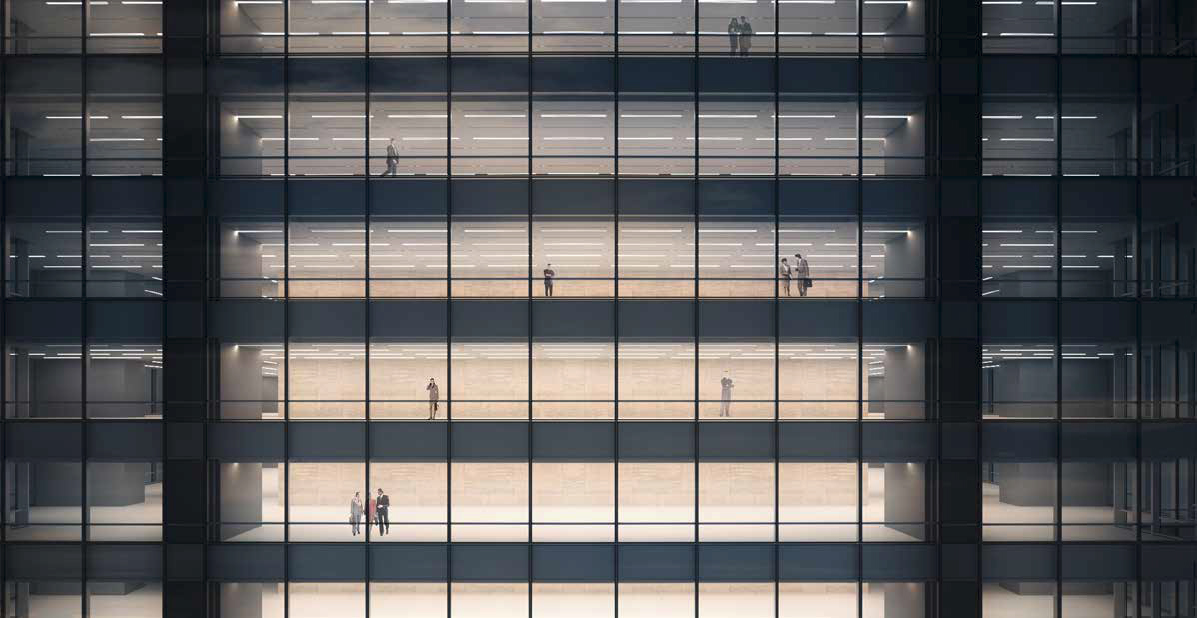

Laminated glass using SentryGlas® was chosen for safety and insulating glass was specified to improve thermal performance. Image © SOM

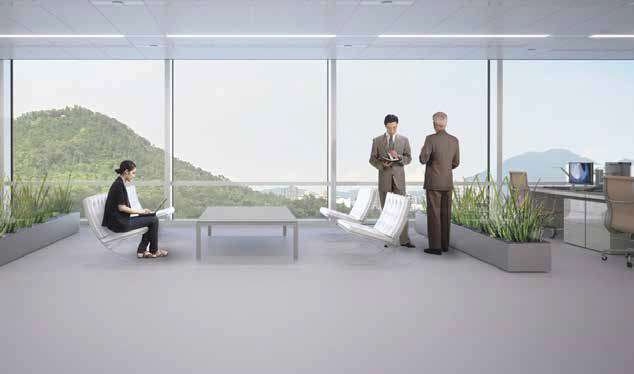

This LEED Gold Pre-Certified (USGBC) design is a stunning example of an architect opting for a façade that allows the building’s occupants a near unobstructed view of the surrounding area. Image © SOM

A stunning example of a façade that gives building occupants nearly unobstructed views of the surrounding area, while delivering classleading structural and environmental performance.

Opening this year, the Shum Yip Upperhills mixed-use development − Class A Office & Luxury Hotel Complex − creates an imposing sight on the skyline of Shenzhen in China. The development features two towers, a ballroom pavilion and a large elevated pedestrian park with walkways that connect the site’s park with two of the city’s existing parks − Lotus Hill and Beacon Hill.

What is immediately obvious is the development’s application of glass, which enables to create an ultrasmooth skin on the skyscrapers thanks to a façade design that uses as few mullions as possible. The façade utilises insulating glass units made with a combination of heat-strengthened laminated and tempered glass.

The two towers − one an office tower measuring 290 m (950 ft) and the other, an office/hotel tower measuring 390 m (1,280 ft) − deploy over 150,000 m2 (1,614,586 ft2) of 1.52 mm (60 mil) SentryGlas® ionoplast interlayers from Trosifol™, in a variety of 3 m (9 ft) wide panel sizes. The insulating glass units consist of an outer lite of laminated glass made with two plies of 8 mm (0.315 in) heat-strengthened glass bonded together with a 1.52 mm SentryGlas® interlayer, a 12 mm (0.47 in) air space and an inner lite of 12 mm tempered glass.

According to architect Eric Van Epps, Director at Skidmore Owings Merrill’s New York office: “The whole building was designed to give occupants a view of the parklands and mountains within and surrounding the city. To enable these vistas, the horizontal glass modules used in the construction were oversized. Laminated glass was chosen for safety and insulating glass was specified to improve thermal performance.”


  • Facades & Curtain Walls


  • AP


  • SentryGlas®


  • Skidmore Owings Merrill


  • Tower A and Tower B: CSG Dongguan
  • Podium: Sanxin Glass
  • Podium Glass fin: Henan Zhongbo Boli

Glazing Contractor

  • Tower A (390 m/1,280 ft): Yuanda China
  • Tower B (290 m/950 ft): China Fangda Group Co., Ltd


  • Zhubo Design
